JASCO Advancing Passive Acoustic Monitoring via Unmanned Surface Vehicles

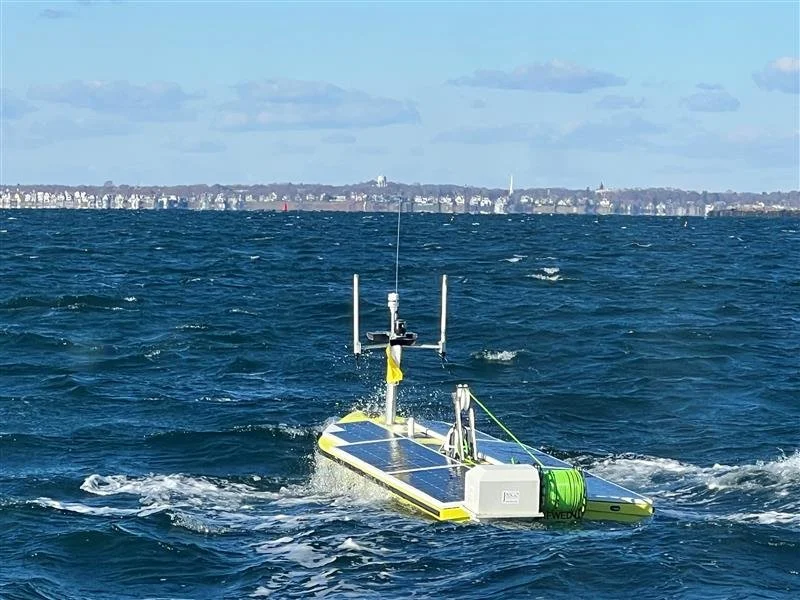

(Heave compensating winch and retrieved collapsible array on Seatrac SP48)
Between December 2024 and March 2025, JASCO led a multi-phase evaluation of dipping acoustics system deployed on an Unmanned Surface Vessel (USV) as part of the Innovative Solutions Canada Test Stream program.
The system was equipped with JASCO’s collapsible planar hydrophone array and heave-compensated winch, enabling acoustics monitoring traditionally performed by crewed vessels with towed arrays. The dipping array system is designed to be integrated with a range of USVs, allowing flexible deployments across different autonomous systems.
Designed as a low-power, low-cost, mid-term deployable platform, the system represents a scalable alternative to traditional crewed acoustic operations.
Collapsible array expanded underwater
Three field trials were conducted off Massachusetts and Rhode Island using SeaTrac SP48 USV as the host platform:
Trial 1 – December 14, 2024 (Marblehead, MA)
Trial 2 – February 20, 2025 (Marblehead, MA)
Trial 3 – March 10–11, 2025 (Point Judith, RI)
JASCO’s proprietary dipping system operates similarly to a sonobuoy. The USV is piloted to a target monitoring area, set to drift, and the collapsible array is deployed through the vessels’ moonpool in the SP48 by the winch. Once the array reaches target depth, the arms expand to form a spatial array with the hydrophones. The winch then compensates for vessel motion to hold the hydrophones nearly motionless.
When the USV drifts out of the target zone, the array is retrieved back into the moonpool where it is streamlined and protected from heavy seas before the USV return to the deployment location.
Typically, hydrophones suspended from surface platforms such as boats or buoys experience motion from waves that can contaminate the acoustic data to a point where it is unusable except for very loud noises at higher frequencies. A key innovation with this system is JASCO’s ultra-low-power acoustically silent winch, which, when paired with the collapsible array, effectively isolates the hydrophones from the wave motion at the surface.
As the result, the system offers operational capabilities similar to sonobuoys, while remaining reusable and suitable for long-duration deployments.
Technology Validation & Maturity Progression
The results demonstrated that:
The sprint-and-drift operational concept is effective for acoustic monitoring operations, and the heave compensation system was quiet.
Acoustic performance above 125 Hz met operational expectations in test conditions.
Testing across multiple trials enables refinements that reduced low-frequency system noise.
Real-time connectivity enables data access, system diagnostics, and remote configuration.
Bearing estimation can be achieved without left-right ambiguity.
The trials also identified targeted engineering enhancements to further improve array stability, deployment reliability, and acoustic noise floor performance — advancing the system toward higher technology readiness.
Scalable Applications Across Civil and Defence Domains
JASCO’s dipping acoustics system is a flexible acoustic platform capable of supporting:

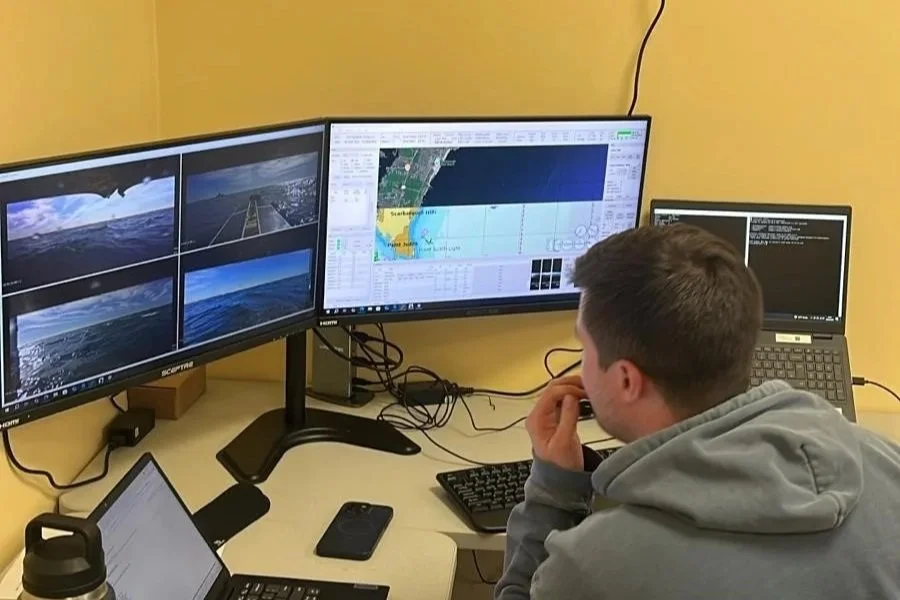

(JASCO’s scientist directing the vehicle)

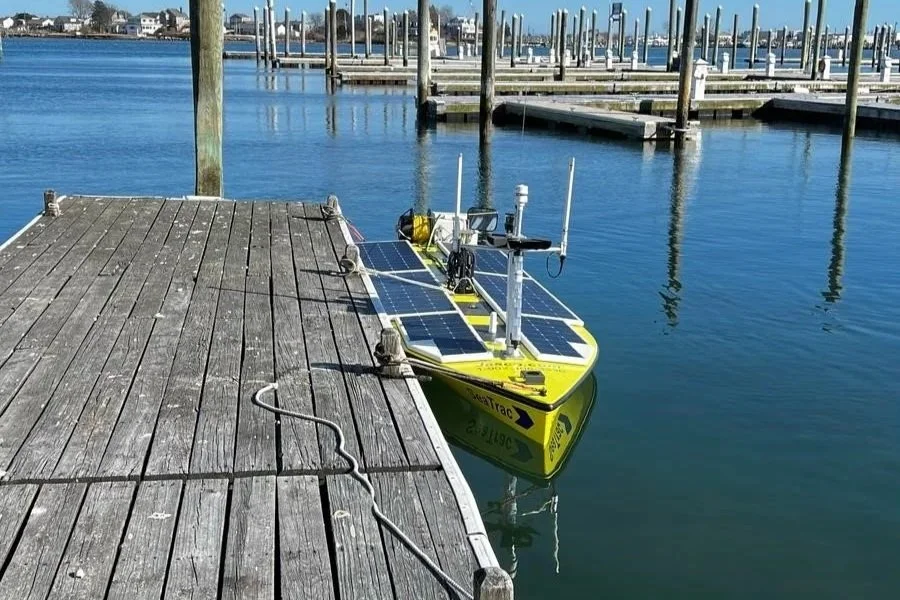

(Vehicle on the surface)
Environmental & Regulatory Monitoring
Marine mammal detection.
Real-time mitigation support.
Ocean ambient noise assessment.
Defence & Security
Anti-submarine warfare support.
Distributed acoustic surveillance.
Shallow-water monitoring.
Quieter platform operations with reduced hydrodynamic noise.
Unlike towed arrays or moored systems, the dipping approach reduces flow noise and system interference, improving acoustic clarity while maintaining mobility and real-time data access. With the sprint‑and‑drift operating method, the system can monitor in an ultra‑low‑power state and remain on station for extended periods. This enables deployment on smaller, solar-powered USVs and reduces operational overhead compared to traditional crewed monitoring approaches.
The project reflects JASCO’s continued investment in scalable, autonomous acoustic systems capable of extending underwater monitoring into distributed, cost-effective and operational environments.
